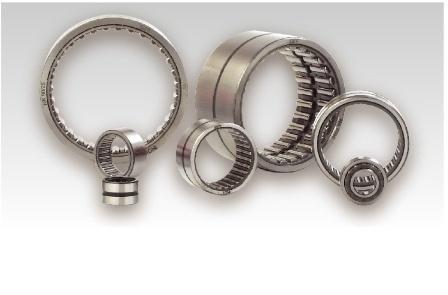

Needle Roller Bearing without Inner Ring (metric)

Needle Roller Bearing without Inner Ring (metric)
Needle Roller Bearing without Inner Ring (metric)
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • Ball Bearings
  • Material
  • Brass
  • Ball Bearing Type
  • Angular Contact
  • Roller Bearing Type
  • Cylindrical
  • Bushes Type
  • Flanged
  • Number Of Rows
  • Double Row
  • Warranty
  • Yes
Product Description

Needle Roller Bearing without Inner Ring (metric)

MRS Needle Roller Bearings are developed to transport high loads with low cross part height thereby saving area and proffer more load transporting capacity. MRS Bearings manufacture range of Roller bearings for application in different Automotive, Industrial and Textile Applications.

We, MRS Roller Bearings, confirm to ISO 1206 : 2001 standards along with standard Tolerances. Mrs Bearings can manufacture at client's demand tolerances specific to requirements and needs of the customers. These Rollers MRS Bearings are of high grade (G2) class thereby making better the bearings' performance as compared to the standard grade rollers.

The Typical Features of the Standard Needle Roller Bearings designed at MRS Bearings are as follows:

Sr.No.

Bearing Type

Characteristics - Application

1

NK/ NKi Series

Light Load Applications without / with Inner Ring.

2

NKS / NKIS Series

Medium To High Load Applications without / with Inner Ring.

3

NKS / NKIS Series

Medium To High Load Applications without / with Inner Ring.

4

NA/ RNA 69 Series

High Load Application without / with Inner Ring.

5

NA / BRI Series (Inch Series)

High Load Application without / with Inner Ring.

6

NA/ RNA 59 Series

High Load Application without / with Inner Ring.

7

NA / RNA 49 2RS Series

Medium Load Application without / with Inner Ring With Rubber Seals on both sides

8

NA / RNA 69 2RS Series

High Load Application without / with Inner Ring With Rubber Seals on both sides.

In addition to the above sizes, we, MRS Bearings, have capacity to develop and manufacture particular bearings as per requirement of customers comprising Cylindrical Bearings, Ball Bearings, Bushes, Cages, and so on. Further reference please contact MRS Bearings.

MRS Bearings provided with Anti Rust Protective Oil and not Lubrication therefore before utilization the Anti Corrosion Protective be eliminated and after elimination of Lubrication, Anti Rust Oil to be made. For Choice of Genuine Lubrication please contact MRS Bearings. Also, If Bearings needed with factory - lubrication, the same can be supplied on request.

The tables on the following provides the abundant technical specifications for choice of the Needle Roller Bearings relating to needs of the Application. The Capacities of Load Calculated & presented in the table are based on the ISO Standard 281 : 2007 & ISO 76 : 2006.

Designation Dimensions Load Capacities
NK NKS RNA 49 RNA 59 RNA 69 Fw D C Dynamic Load Capacity Static Load Capacity




(mm) (mm) (mm) Cor (kN) Cr (kN)
NK 8/12


8 15 12 4.12 4.25
NK 8/16


8 15 16 5.32 5.92
NK 9/12


9 16 12 4.38 4.76
NK 9/16


9 16 16 4.68 7.87
NK 10/12


10 17 12 4.64 5.27
NK 10/1


10 17 16 6.87 8.71
NK 12/12


12 19 12 6.34 6.88
NK 12/16


12 19 16 9.40 11.33
NK 14/16


14 22 16 11.97 14.06
NK 14/20


14 22 20 14.85 18.54


RNA 4900
14 22 13 9.68 10.70
NK 15/16


15 23 16 11.90 14.20
NK 15/20


15 23 20 14.76 18.73
NK 16/16


16 24 16 12.64 15.52
NK 16/20


16 24 20 15.68 20.47


RNA 4901
16 24 13 10.22 11.81



RNA 6901 16 24 22 16.41 21.71
NK 17/16


17 25 16 13.27 16.85
NK 17/20


17 25 20 16.46 22.22
NK 18/16


18 26 16 13.16 16.97
NK 18/20


18 26 20 17.19 23.98
NK 19/16


19 27 16 14.55 19.52
NK 19/20


19 27 20 18.05 25.74
NK 20/16


20 28 16 14.38 19.63
NK 20/20


20 28 20 17.84 25.89

NKS 20

20 32 20 25.00 29.00


RNA 4902
20 28 13 11.63 14.94



RNA 6902 20 28 23 18.67 27.46
NK 21/16


21 29 16 15.05 20.97
NK 21/20


21 29 20 18.67 27.66
NK 22/16


22 30 16 15.49 22.31
NK 22/20


22 30 20 19.21 29.43

NKS 22

22 35 20 27.80 32.25


RNA 4903 2RS
22 30 13 10.87 14.17


RNA 4903
22 30 13 12.53 16.98



RNA 6903 22 30 23 20.11 31.20
NK 24/16


24 32 16 15.23 22.50
NK 24/20


24 32 20 18.89 29.68

NKS 24

24 37 20 29.50 35.40
NK 25/16


25 33 16 15.86 23.85
NK 25/20


25 33 20 19.67 31.45

NKS 25

25 38 20 27.70 33.00


RNA 4904
25 37 17 24.24 30.10


RNA 5904
25 37 23 29.00 38.50



RNA 6904 25 37 30 38.31 53.95
NK 26/16


26 34 16 17.10 26.45
NK 26/20


26 34 20 21.21 34.88
NK 28/20


28 37 20 21.53 36.77
NK 28/30


28 37 30 35.39 60.81

NKS 28

28 42 20 30.94 39.28


RNA 49/22
28 39 17 24.08 30.55



RNA 69/22 28 39 30 42.05 62.59
NK 29/20


29 38 20 23.63 37.08
NK 29/30


29 38 30 34.80 61.01
NK 30/20


30 40 20 23.63 37.20
NK 30/30


30 40 30 34.80 61.20

NKS 30

30 45 20 32.25 42.30


RNA 4905
30 42 17 26.09 34.66


RNA 5905
30 42 23 32.10 44.00



RNA 6905 30 42 30 41.72 63.11
NK 32/20


32 42 20 25.38 41.15
NK 32/30


32 42 30 37.38 67.70

NKS 32

32 47 22 36.31 46.52


RNA 49/28
32 45 17 26.85 36.86



RNA 69/28 32 45 30 45.04 71.53
NK 35/20


35 45 20 26.57 45.23
NK 35/30


35 45 30 39.13 74.41

NKS 35

35 50 22 28.37 37.47


RNA 4906
35 47 17 27.52 39.17



RNA 6906 35 47 30 44.41 72.21
NK 37/20


37 47 20 27.40 47.31
NK 37/30


37 47 30 40.35 77.84

NKS 37

37 52 22 39.29 53.70
NK 38/20


38 48 20 27.52 49.30
NK 38/30


38 48 30 40.53 81.11
NK 40/20


40 50 20 29.09 53.29
NK 40/30


40 50 30 42.85 87.67

NKS 40

40 55 22 50.30 76.50


RNA 49/32
40 52 20 29.06 43.65



RNA 69/32 40 52 36 49.83 87.30
NK 42/20


42 52 20 29.09 53.47
NK 42/30


42 52 30 42.85 87.96


RNA 4907
42 55 20 36.72 59.39



RNA 6907 42 55 36 51.52 91.66
NK 43/20


43 53 20 29.87 55.46
NK 43/30


43 53 30 43.99 91.25

NKS 43

43 58 22 39.62 57.30
NK 45/20


45 55 20 29.75 57.54
NK 45/30


45 55 30 41.60 88.36

NKS 45

45 60 22 41.18 60.50
NK 47/20


47 57 20 31.22 61.54
NK 47/30


47 57 30 45.99 101.25


RNA 4908
48 62 22 45.69 71.45



RNA 6908 48 62 40 70.75 125.37
NK 50/25


50 62 25 41.40 79.66
NK 50/35


50 62 35 53.55 110.62

NKS 50

50 65 22 34.26 53.35


RNA 4909
52 68 22 48.77 78.51



RNA 6909 52 68 40 75.52 137.76
NK 55/25


55 68 25 46.09 96.17
NK 55/35


55 68 35 56.11 123.21

NKS 55

55 72 22 36.57 58.64


RNA 4910
58 72 22 49.31 82.53



RNA 6910 58 72 40 76.36 144.82
NK 60/25


60 72 25 46.09 96.65
NK 60/35


60 72 35 60.14 135.81

NKS 60

60 80 28 67.41 103.77


RNA 4911
63 80 25 64.03 111.40



RNA 6911 63 80 45 94.82 171.82
NK 65/25


65 78 25 46.25 102.45
NK 65/35


65 78 35 65.46 160.45
NK 68/25


68 82 25 49.73 100.93
NK 68/35


68 82 35 66.24 145.74


RNA 4912
68 85 25 64.25 116.37



RNA 6912 68 85 45 99.26 188.64
NK 70/25


70 85 25 46.92 98.49
NK 70/35


70 85 35 63.82 145.98


RNA 4913
72 90 25 66.02 121.18


RNA 5913
72 90 34 91.10 183.70



RNA 6913 72 90 45 111.42 221.08
NK 73/25


73 90 25 56.08 106.86
NK 73/35


73 90 35 63.82 146.30
NK 75/25


75 92 25 57.48 110.61
NK 75/35


75 92 35 81.96 174.55
NK 80/25


80 95 25 59.13 127.27
NK 80/35


80 95 35 81.25 191.32


RNA 4914
80 100 30 87.90 158.19



RNA 6914 80 100 54 138.30 283.66
NK 85/25


85 105 25 71.40 125.55
NK 85/35


85 105 35 100.42 195.00


RNA 4915
85 105 30 88.11 164.78



RNA 6915 85 105 54 144.08 310.50
NK 90/25


90 110 25 77.94 141.81
NK 90/35


90 110 35 108.70 217.26


RNA 4916
90 110 30 92.79 177.25



RNA 6916 90 110 54 125.28 321.55
NK 95/26


95 115 26 78.20 148.62
NK 95/36


95 115 36 108.23 225.71


RNA 4917
100 120 35 108.01 234.91
NK 100/26


100 120 26 84.76 165.75
NK 100/36


100 120 36 115.93 247.89


RNA 4918
105 125 35 123.52 270.55
NK 105/26


105 125 26 96.00 178.00
NK 105/36


105 125 36 128.00 258.00


RNA 4919
110 130 35 123.52 271.27
