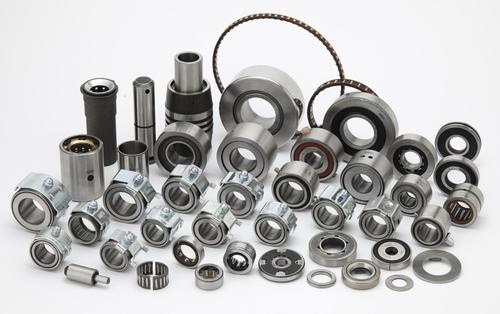

Needle roller bearing with Inner Ring (metric)

Needle roller bearing with Inner Ring (metric)
Needle roller bearing with Inner Ring (metric)
Product Code : 04
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • Ball Bearings
  • Material
  • Brass
  • Ball Bearing Type
  • Deep Groove
  • Roller Bearing Type
  • Cylindrical
  • Bushes Type
  • Flanged
  • Number Of Rows
  • Double Row
  • Warranty
  • Yes
Product Description

We at MRS produced Needle Roller Bearing with Inner Ring ( metric) range. This Bearings have the construction similar to that of Neddle Roller Bearing without Inner Ring but Inner ring is added to the bearings so that the rolling element run on super finish inner ring track. This type of bearings are used in applications were the sharped on which the bearing is mounted are not grinded or super finished.

Technical Specifications:



Designation Dimensions Load Capacity
NKI NKIS NA 49 NA 69 d F D B Dynamic Load Capacity Static Load Capacity


NA 59
(mm) (mm) (mm) (mm) Cor(kN) Cr(kN)
NKI 10/16


10 14 22 16 11.97 14.06
NKI 10/20


10 14 22 20 14.85 18.54


NA 4900 2RS
10 14 22 13 7.48 11.77


NA 4900
10 14 22 13 9.68 10.70
NKI 12/16


12 16 24 16 12.64 15.52
NKI 12/20


12 16 24 20 15.68 20.47


NA 4901 2RS
12 16 24 13 8.30 9.10


NA 4901
12 16 24 13 10.22 11.81



NA 6901 12 16 24 22 16.41 21.71
NKI 15/16


15 19 27 16 14.55 19.52
NKI 15/20


15 19 27 20 18.05 25.74


NA 4902 2RS
15 20 28 13 9.40 11.33


NA 4902
15 20 28 13 11.63 14.94



NA 6902 15 20 28 23 18.67 27.46
NKI 17/16


17 21 29 16 15.05 20.97
NKI 17/20


17 21 29 20 18.67 27.66

NKIS 17

17 24 37 20 29.10 34.70


NA 4903 2RS
17 22 30 13 10.87 14.17


NA 4903
17 22 30 13 12.53 16.98



NA 6903 17 22 30 23 20.11 31.20
NKI 20/16


20 24 32 16 15.23 22.50
NKI 20/20


20 24 32 20 18.89 29.68

NKIS 20

20 28 42 20 31.20 40.10


NA 4904 2RS
20 25 37 17 19.00 21.90


NA 4904
20 25 37 17 24.24 30.10


NA 5904
20 25 37 23 29.00 38.50



NA 6904 20 25 37 30 38.31 53.95
NKI 22/16


22 26 34 16 17.10 26.45
NKI 22/20


22 26 34 20 21.21 34.88


NA 49/22
22 28 39 17 24.08 30.55



NA 69/22 22 28 39 30 42.05 62.59
NKI 25/20


25 29 38 20 23.63 37.08
NKI 25/30


25 29 38 30 34.80 61.01

NKIS 25

25 32 47 22 36.31 46.52


NA 4905 2RS
25 30 42 17 21.03 26.28


NA 4905
25 30 42 17 26.09 34.66


NA 5905
25 30 42 23 32.10 44.00



NA 6905SR 25 30 42 30 41.72 63.11



NA 6905DR 25 30 42 30 30.20 46.10
NKI 28/20


28 32 42 20 25.38 41.15
NKI 28/30


28 32 42 30 37.38 67.70


NA 49/28
28 32 45 17 26.85 36.86



NA 69/28 28 32 45 30 45.04 71.53
NKI 30/20


30 35 45 20 26.57 45.23
NKI 30/30


30 35 45 30 39.13 74.41

NKIS 30

30 37 52 22 39.29 53.70


NA 4906 2RS
30 35 47 17 23.21 31.30


NA 4906
30 35 47 17 27.52 39.17



NA 6906 30 35 47 30 44.41 72.21
NKI 32/20


32 37 47 20 27.40 47.31
NKI 32/30


32 37 47 30 40.35 77.84


NA 49/32
32 40 52 20 29.06 43.65



NA 69/32 32 40 52 36 50.00 87.30
NKI35/20


35 40 50 20 29.09 53.29
NKI 35/30


35 40 50 30 42.85 87.67

NKIS 35

35 43 58 22 40.95 59.90


NA 4907 2RS
35 42 55 20 29.10 43.40


NA 4907
35 42 55 20 36.72 59.39



NA 6907 35 42 55 36 53.20 95.00
NKI 38/20


38 43 53 20 29.87 55.46
NKI 38/30


38 43 53 30 43.99 91.25
NKI 40/20


40 45 55 20 29.75 57.54
NKI 40/30


40 45 55 30 41.60 88.36

NKIS 40

40 50 65 22 34.26 53.35


NA 4908 2RS
40 48 62 22 39.60 58.30


NA 4908
40 48 62 22 45.69 71.45



NA 6908 40 48 62 40 70.70 125.30
NKI 42/208


42 47 57 20 31.22 61.54
NKI 42/30


42 47 57 30 45.99 101.25
NKI 45/25


45 50 62 25 41.40 79.66
NKI 45/35


45 50 62 35 53.55 110.62

NKIS 45

45 55 72 22 36.57 58.64


NA 4909 2RS
45 52 68 22 41.80 64.90


NA 4909
45 52 68 22 48.77 78.51



NA 6909 45 52 68 40 75.50 137.70
NKI 50/25


50 55 68 25 46.09 96.17
NKI 50/35


50 55 68 35 56.11 123.21

NKIS 50

50 60 80 28 67.41 103.77


NA 4910
50 58 72 22 49.31 82.53



NA 6910 50 58 72 40 76.30 144.80
NKI 55/25


55 60 72 25 46.09 96.65
NKI 55/35


55 60 72 35 60.14 135.81


NA 4911
55 63 80 25 64.03 111.40



NA 6911 55 63 80 45 94.80 172.00
NKI 60/25


60 68 82 25 49.73 100.93
NKI 60/35


60 68 82 35 66.24 145.74


NA 4912
60 68 85 25 64.25 116.37


NA 5912
60 68 85 34




NA 6912 60 68 85 45 99.20 188.60
NKI 65/25


65 73 90 25 56.08 106.86
NKI 65/35


65 73 90 35 63.82 146.30


NA 4913
65 72 90 25 66.02 121.18


NA 5913
65 72 90 34 91.10 183.70



NA 6913 65 72 90 45 111.40 221.00
MKI 70/25


70 80 95 25 59.13 127.27
NKI 70/35


70 80 95 35 80.58 189.29


NA 4914
70 80 100 30 102.98 193.90



NA 6914 70 80 100 54 138.30 283.00
NKI 75/25


75 85 105 25 71.40 125.55
NKI 75/35


75 85 105 35 100.42 195.00


NA 4915
75 85 105 30 88.11 164.78



NA 6915 75 85 105 54 140.00 300.00
NKI 80/25


80 90 110 25 81.45 150.08
NKI 80/35


80 90 110 35 108.70 217.26


NA 4916
80 90 110 30 92.79 177.25



NA 6916 80 90 110 54 125.00 321.00
NKI 85/26


85 95 115 26 78.20 148.62
NKI 85/36


85 95 115 36 108.23 225.71


NA 4917
85 100 120 35 108.01 234.91
NKI 90/26


90 100 120 26 84.76 165.72
NKI 90/36


90 100 120 36 115.93 247.89


NA 4918
90 105 125 35 123.52 270.55
NKI 95/26


95 105 125 26 76.00 178.00
NKI 95/36


95 105 125 36 128.00 258.00


NA 4919
95 110 130 35 123.52 271.27

Trade Information
  • FOB Port
  • Mumbai, Maharashtra, India
  • Payment Terms
  • Cash Against Delivery (CAD), Cheque, Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
  • Supply Ability
  • 2 Million Pieces (Variety Specific) Per Year
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Standard Packaging
  • Main Export Market(s)
  • Asia, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • TS 16949 ISO 9001 ISO 1206 : 2001
